Cast Steel Swing Flange Check Valve
  • Cast Steel Swing Flange Check ValveCast Steel Swing Flange Check Valve

Cast Steel Swing Flange Check Valve

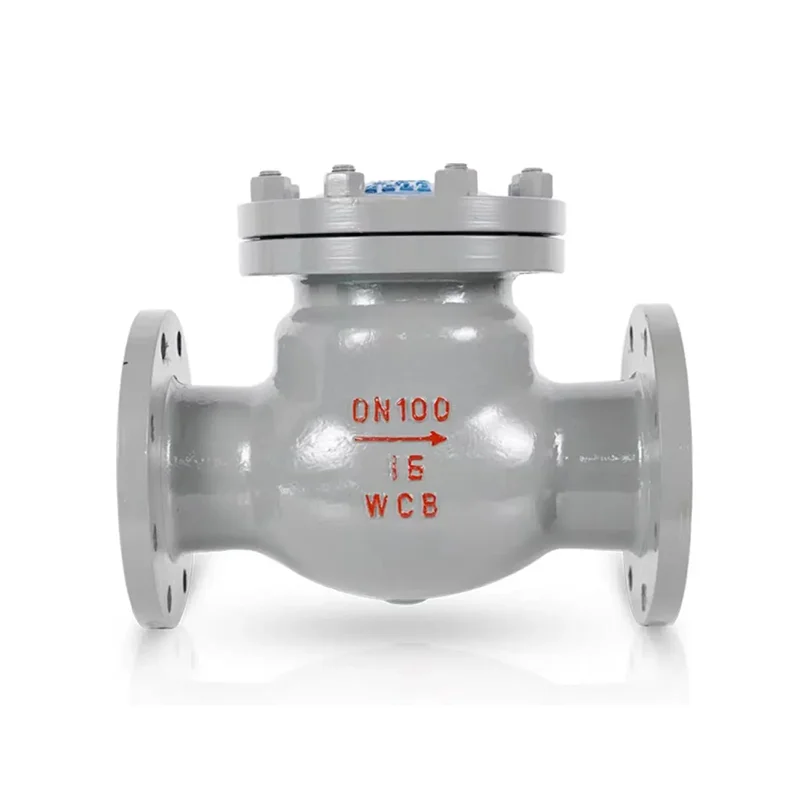

The cast steel swing flange check valve produced by Shengshi Huagong is an automatic valve that relies on the flow of the medium and the gravity of the valve disc to open and close by rotating the valve disc around the pin outside the valve seat. It is mainly used to prevent the backflow of the medium in the pipeline and ensure the safe and stable operation of the system. Its unique swing structure enables it to perform well in large-diameter pipelines and high-flow conditions, and is an indispensable fluid control equipment in industrial pipeline systems.

Product Advantages

(I) Low flow resistance and high efficiency

The unique swing structure design of the cast steel swing check valve makes the cast steel swing check valve have low fluid resistance when the medium flows. After the large-diameter valve disc is opened, the medium flow area is large and the pressure loss is small, which can meet the transportation needs of large-flow media, improve the transportation efficiency of the pipeline system, and reduce energy consumption. Whether it is material transportation in industrial production or water flow transmission in urban water supply and drainage systems, it can effectively reduce energy loss and save operating costs.

(II) Rapid sealing and anti-backflow

The valve disc of this cast steel swing check valve can quickly rotate around the pin shaft to close at the moment of medium backflow to achieve rapid sealing. This rapid response mechanism can effectively reduce the time and flow of medium backflow and reduce the risk of damage to equipment and systems caused by medium backflow. Especially in some working conditions that are sensitive to medium backflow, such as pump outlet pipes, steam pipes, etc., the rapid sealing performance of cast steel swing check valves can provide reliable protection for system safety.

(III) High reliability and long life

The high-quality cast steel material and precise manufacturing process of this product give the cast steel swing check valve high reliability and long service life. The high strength and good impact resistance of the cast steel valve body, as well as the wear resistance and corrosion resistance of the valve disc and valve seat, enable it to operate stably for a long time under harsh working conditions. At the same time, reasonable structural design and strict quality control reduce the wear and failure probability of the valve, reduce the maintenance frequency and cost, and improve the use efficiency and economic benefits of the equipment.

(IV) Wide applicability

Our Shengshi Huagong cast steel swing flange check valve can be used for a variety of media, including water, steam, oil, gas, acid and alkali solution, etc., and can adapt to different working pressures and temperature ranges. From low-pressure and normal-temperature water supply and drainage systems to high-pressure and high-temperature petrochemical and power industries, this valve can work stably to meet the use requirements of different industries and different working conditions, and has wide applicability and versatility.


Technical parameters

Project

Parameter range

Nominal diameter

DN50 - DN1200

Nominal pressure

PN1.0MPa - PN16.0MPa; Class150 - Class2500

Applicable temperature

-29℃ - 550℃

Applicable medium

Water, steam, oil, gas, acid and alkali solution, etc.

Valve body material

WCB, WC6, WC9 and other cast steel

Valve disc material

Alloy steel, stainless steel, etc.

Sealing type

Metal seal, soft seal

Connection method

Flange connection

Standard

GB, HG, ASME, ANSI, etc.


Installation and maintenance

(I) Installation points

1. Before installation, carefully check whether the model and specifications of the valve are consistent with the design requirements, check whether the valve components are intact, and remove the debris and dirt inside the valve.

2. During installation, ensure that the flow direction of the valve is consistent with the flow direction of the medium, which can be judged according to the arrow mark on the valve. At the same time, it is necessary to ensure that the valve is installed on a horizontal pipeline or a vertical pipeline (the medium flows from bottom to top) to ensure that the valve disc can be opened and closed normally by gravity and medium pressure.

3. During the flange connection process, the sealing gasket should be installed correctly and the bolts should be tightened evenly to avoid sealing failure due to uneven force. When tightening the bolts, they should be tightened in a diagonal cross order and tightened step by step in multiple times to ensure that the flange connection is tight.

4. The valve should be installed in a position that is convenient for operation and maintenance. At the same time, the thermal expansion and contraction of the pipeline system should be considered, and sufficient space should be reserved to prevent damage to the valve due to pipeline deformation.

(II) Maintenance

1. Check the sealing performance of the valve regularly and observe whether there is any leakage of the medium. If leakage is found, the cause should be found in time. It may be the damage of the sealing gasket, the wear of the sealing surface of the valve disc and the valve seat, etc. The sealing gasket should be replaced or the sealing surface should be ground and repaired according to the specific situation.

2. Check the wear of the valve disc, valve seat, pin shaft and other parts. If there is serious wear or damage, the corresponding parts should be replaced in time. At the same time, to ensure that the pin shaft rotates flexibly, the pin shaft can be lubricated and maintained regularly to prevent the normal rotation of the valve disc from being affected by rust or jamming.

3. For valves that are not used for a long time, the opening and closing operations should be performed regularly to prevent the valve disc from sticking to the valve seat. During the operation, pay attention to the movement of the valve disc and deal with any abnormalities in time.

4. Keep the valve surface clean and perform anti-corrosion treatment on the valve regularly. You can choose appropriate anti-corrosion paint according to the use environment to prevent the valve body from rusting and corrosion and extend the service life of the valve.

Cast Steel Swing Flange Check Valve


Hot Tags: Cast Steel Swing Flange Check Valve
