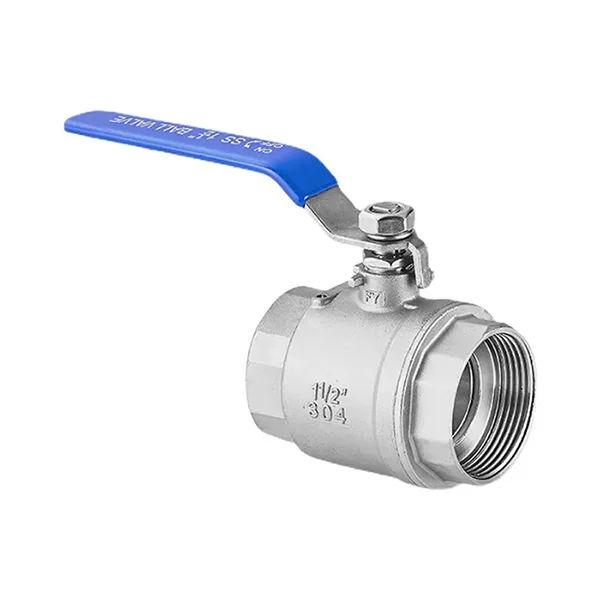

Two Piece Stainless Steel Threaded Ball Valve

This two piece stainless steel threaded ball valve produced by Shengshi Huagong is made of high-quality stainless steel. Common stainless steel grades include 304 and 316. With the threaded connection method, it can be easily installed with the pipeline. This product has excellent corrosion resistance and good sealing performance, and has a long service life. Shengshi Huagong looks forward to cooperating with you.

Send Inquiry

Product Description

Our two-piece stainless steel threaded ball valve has a wide range of nominal diameters, from DN15 to DN100, to meet the needs of different pipe diameters; the nominal pressure covers PN1.6MPa - PN4.0MPa, suitable for a variety of pressure conditions; the applicable temperature range is -20℃ - 200℃, and it can operate stably in most conventional environments, suitable for a variety of media such as water, oil, gas, weak acids and weak alkalis.

Technical parameters

Parameter classification	Specific parameters
Basic parameters	Nominal diameter: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
	Nominal pressure: PN1.6MPa, PN2.5MPa, PN4.0MPa
	Applicable temperature: -20℃ - 200℃
Material parameters	Valve body / ball / stem material: 304 stainless steel, 316 stainless steel
	Sealing ring material: polytetrafluoroethylene (PTFE), nitrile rubber (NBR), etc.
Connection parameters	Connection method: threaded connection (external thread / internal thread)
	Thread specifications: G1/2", G3/4", G1", G1 1/4", G1 1/2", etc.
Performance parameters	Operation mode: Manual (handle operation)
	Sealing performance: Leakage level meets ANSI B16.104 standard IV or V level
	Ball opening angle: 90°
Scope of application	Applicable media: water, oil, gas, weak acid and weak alkali solutions
	Application scenarios: industrial pipelines, building water supply and drainage, gas systems, food and beverage, pharmaceuticals and other fields
Implementation standards	Comply with domestic and international standards such as GB/T 12237, ASME B16.34, ISO 5208, etc.

Application scenarios Industrial field

In the chemical industry, it is used for the transportation control of various corrosive media; in the field of petroleum and natural gas, it can cut off and regulate oil and natural gas; in the food and beverage industry, 316 stainless steel meets food hygiene standards and is suitable for raw material transportation and product filling; in the pharmaceutical industry, it is used for fluid control in the drug production process to ensure the quality and safety of drugs. Civil field Our two-piece stainless steel threaded ball valve is widely used in building water supply and drainage systems, such as hot and cold water supply pipelines in residential, office buildings, hotels and other places to achieve water flow control and regulation; in gas pipeline systems, it ensures the safe transportation and use of gas; in home decoration, it is used for pipeline connection and control in kitchens, bathrooms and other areas, which is convenient and practical.
