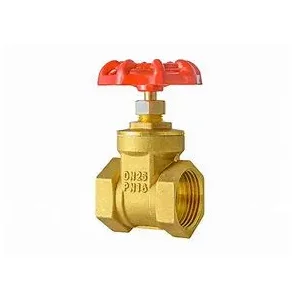

Copper Core Copper Rod Threaded Gate Valve

The copper core copper rod threaded gate valve produced by our Tanggu Shengshi Huagong is a cut-off valve widely used in various pipeline systems, mainly used to control the on and off of fluids. With its own characteristics, it plays a key role in building water supply and drainage, HVAC, food and beverage, pharmaceutical and other industries to ensure the stable operation of fluid transportation systems.

Send Inquiry

Product Description

The "copper" in Shengshi Huagong's copper core copper rod threaded gate valve represents that the valve body, valve cover and other main components are made of copper or copper alloy, which gives the valve good corrosion resistance, thermal conductivity and certain antibacterial properties; "thread" refers to the threaded connection method, which makes the valve installation and disassembly extremely convenient. It does not require complex welding or large installation tools. It can be connected to the pipeline with simple manual operation. It is especially suitable for small and medium-caliber pipelines and scenes with limited space and frequent installation and maintenance; "gate valve" indicates its working principle, which is to cut off and conduct the fluid through the lifting and lowering movement of the gate.

Technical parameters

Project	Parameter range
Nominal diameter	DN15 - DN100
Nominal pressure	PN1.0MPa - PN2.5MPa
Applicable temperature	-20℃ - 200℃ (depending on the specific material and sealing material)
Applicable media	Water, steam, air, oil, some corrosive media, etc.
Valve body / valve cover material	Copper alloys such as brass (such as HPb59-1), bronze (such as ZCuSn10Zn2)
Gate material	Copper alloy
Valve stem material	Stainless steel (such as 304, 316) or copper alloy
Sealing form	Soft and hard combination seal (sealing surface inlaid with soft material)
Connection method	Threaded connection
Drive method	Manual
Standard	Follow GB (national standard), ISO (international standard), etc.
