Soft Sealed Flange Butterfly Valve For Water Supply Pipeline

The our Tanggu Shengshi Huagong soft sealed flange butterfly valve for water supply pipeline is a fluid control equipment widely used in industrial and civil pipeline systems. With its excellent sealing performance, convenient installation method and flexible operating characteristics, the soft-sealed flange butterfly valve for water supply pipelines plays an important role in water supply and drainage, HVAC, food and beverage, pharmaceuticals and other fields.

Send Inquiry

Product Description

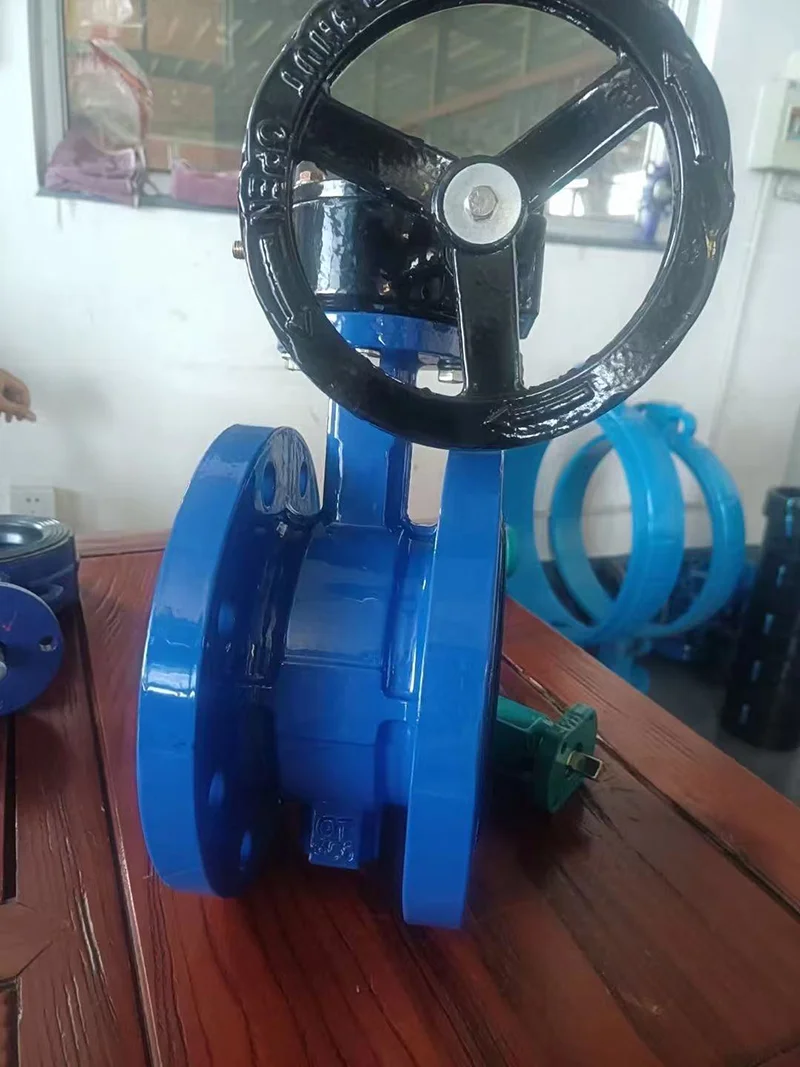

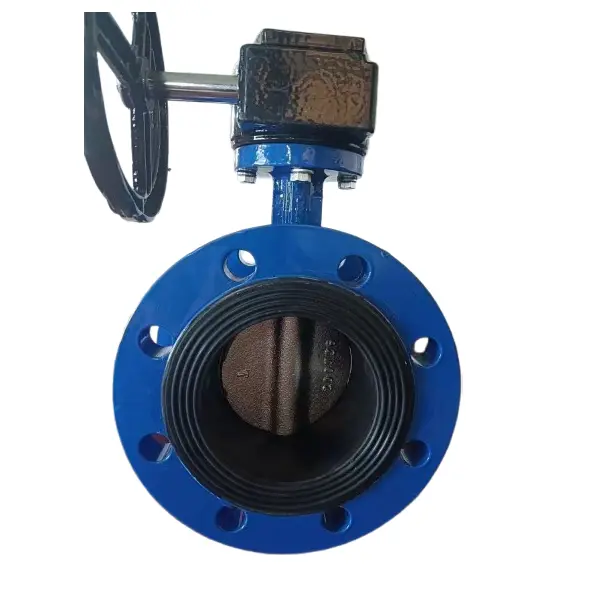

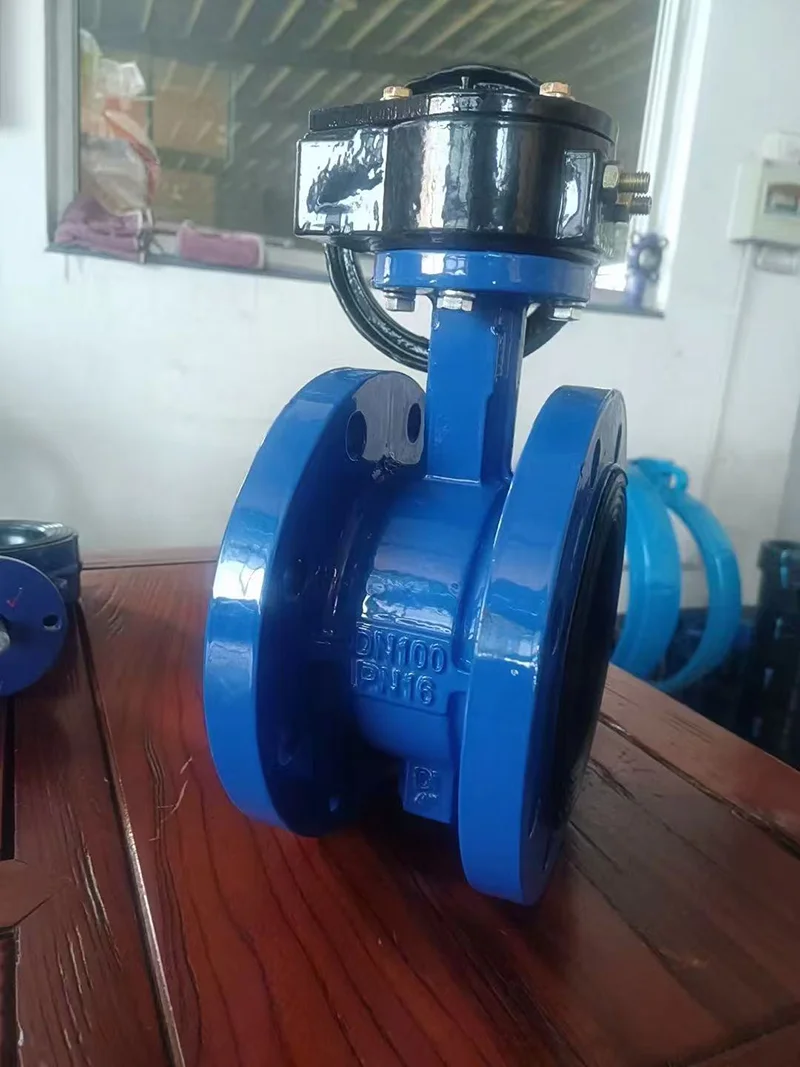

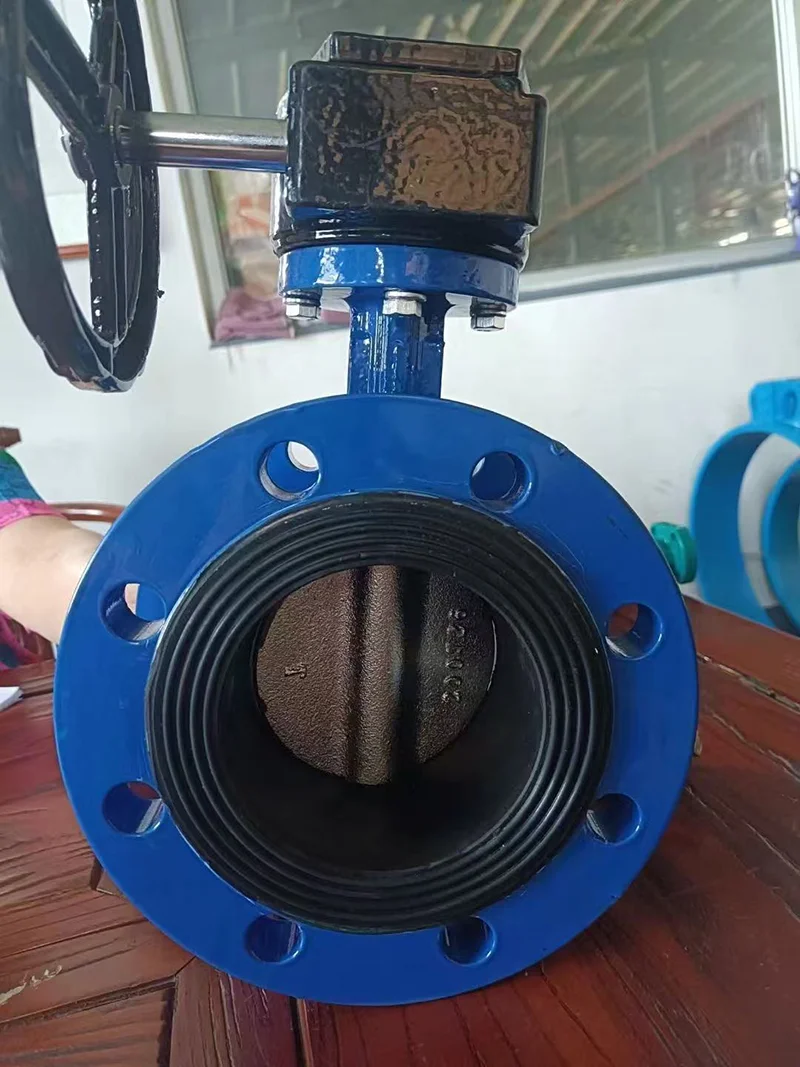

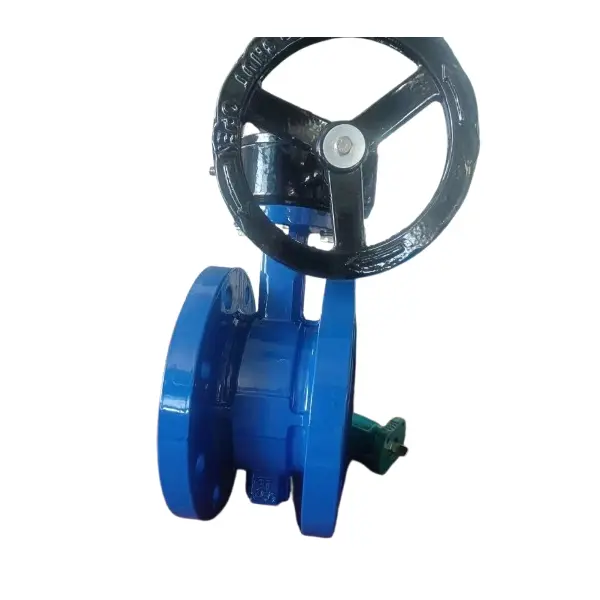

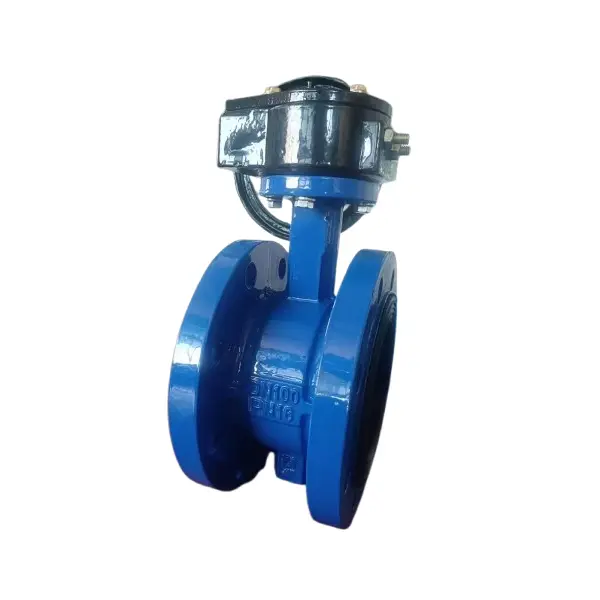

Our Shengshi Chemical's soft sealed flange butterfly valve for water supply pipelines adopts flange connection, and bolts are used to tightly fix the valve and pipeline flange to ensure the stability and sealing of the connection; the core soft sealing structure is coated with elastic sealing materials such as rubber and polytetrafluoroethylene (PTFE) on the edge of the butterfly plate, and the flexibility and deformation ability of the material are used to achieve zero leakage or extremely low leakage, effectively preventing medium leakage. When working, the butterfly plate rotates 90° around the valve stem axis to realize the opening, closing and flow regulation functions of the valve, and is a reliable fluid control element in the pipeline system.

Technical parameters

Project	Parameter range
Nominal diameter	DN40 - DN1200
Nominal pressure	PN1.0MPa - PN16.0MPa
Applicable temperature	-20℃ - 200℃ (depending on the sealing material)
Applicable medium	Water, steam, air, oil, acid and alkali solution, etc.
Valve body material	Ductile iron, carbon steel, stainless steel, etc.
Butterfly plate material	Matching with valve body, or using special alloy materials
Sealing form	Soft seal (rubber, polytetrafluoroethylene, etc.)
Connection method	Flange connection
Driving method	Manual, electric, pneumatic
Standard	Follow international and national standards such as ANSI, ISO, GB, etc.

Installation and maintenance

Installation points:

Pre-installation inspection: Before installing the soft-seal flange butterfly valve for water supply pipelines, it is necessary to carefully check whether the valve model, specification, pressure level, material and other parameters are consistent with the design requirements, check whether the valve components are intact, whether the sealing surface is damaged, whether the valve stem can rotate flexibly, and whether the drive device is operating normally. At the same time, clean up the debris, oil and rust inside the valve and the pipeline to ensure a clean installation environment. Check whether the sealing surface of the pipeline flange is flat and whether the bolt holes are aligned. If there are defects, they should be repaired or replaced to ensure the sealing and reliability of the connection between the valve and the pipeline.

Installation location: The valve should be installed in a location that is convenient for operation, maintenance and observation. Avoid installing it in the bends, low-lying areas or places where water easily accumulates in the pipeline to prevent the valve from being damaged due to uneven force or water corrosion. For electric and pneumatic soft-seal flange butterfly valves, sufficient space should be reserved to install the drive device, and the connection of the power supply and air pipe should be convenient and safe. Pay attention to the flow direction mark of the valve during installation to ensure that the medium flows in the correct direction.

Soft Sealed Flange Butterfly Valve For Water Supply Pipeline
