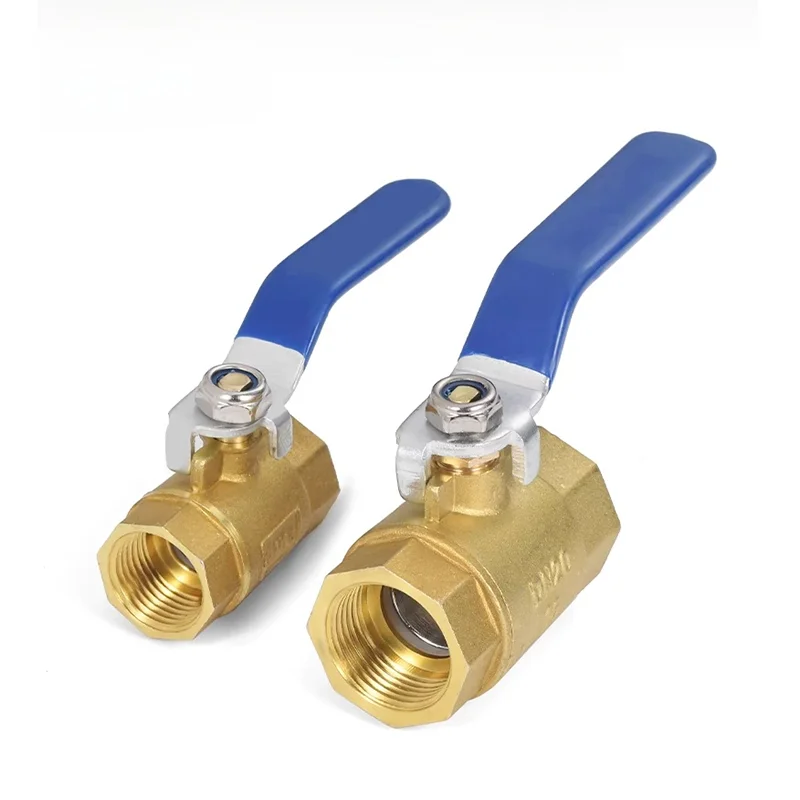

Copper Wire Buckle Ball Valve

The copper wire buckle ball valve produced by our Shengshi Huagong is also called copper threaded ball valve. It is a valve that opens or closes the fluid by rotating the valve core (ball). Its connection method is thread (thread). The valve body material is mainly copper alloy (such as brass, bronze), which has the characteristics of corrosion resistance and good sealing.

Send Inquiry

Product Description

Shengshi Huagong's copper thread ball valve is made of copper alloy, which is highly corrosion-resistant and suitable for non-corrosive or weakly corrosive media such as water, steam, oil, and gas. The product has a simple structure and quick opening and closing. It can be fully opened/closed by rotating 90°, with low flow resistance and good sealing performance. The connection method adopts threaded connection, which is easy to install and does not require welding. It is suitable for small-diameter pipes, such as DN15-DN50.

Basic parameters

Parameter name	Specific parameters
Nominal diameter	DN15 - DN100 (different specifications can be selected according to actual needs, such as DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, etc.)
Nominal pressure	PN1.6MPa, PN2.5MPa, PN4.0MPa, etc. (common pressure levels, other special pressure levels are also available)
Applicable temperature	-20℃ - 200℃ (different materials and seals can adapt to different temperature ranges, this is the general range)
Applicable medium	Water, oil, gas, steam, etc. (depending on the material and sealing performance of the ball valve, it can be applied to a variety of media)
Valve body material	Copper alloy (such as H59, H62 brass, etc., selected according to product requirements)
Ball material	Copper alloy, stainless steel (such as 304, 316, etc., stainless steel is used in occasions with high corrosion resistance requirements)
Valve stem material	Copper alloy, stainless steel
Sealing form	Soft seal (such as polytetrafluoroethylene PTFE, nitrile rubber NBR, etc.), hard seal (such as metal to metal seal)
Connection method	Threaded connection (external thread or internal thread, thread specifications vary according to nominal diameter, such as G1/2", G3/4", G1", etc.)
Operation method	Manual (operated by handle or handwheel), electric (equipped with electric actuator), pneumatic (equipped with pneumatic actuator), etc.
Leakage level	Meet relevant standards, such as ANSI B16.104 standard IV or V (determined according to product quality and use requirements)
Ball opening angle	90° (when the ball valve is fully open, the ball opening angle is 90 degrees, achieving the maximum flow of the medium)
